Re410, Re4/4 (I) class Electric Locomotive of the SBB

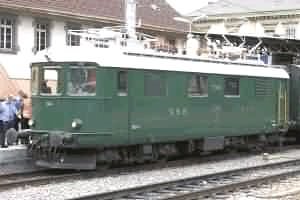

Re410 SBB 10044 in SBB green
|

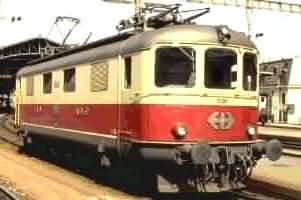

Re410 SBB 10033 in TEE colours
|
Class Numbers :
:
:
:
Wheel Arrange :
Builders :
Build Dates :
Power Supply :
Maximum Speed :
Len over Buffers :
Driving Wheels :
|
Re410 10001-26 (a)
Re410 10027-50 (b)
SBB-TEE Re410 (b)
10033, 34, 46, 50
Bo' Bo'
SLM, BBC
1946-51
15kV
125km/h
14.7, 14.9m
1040mm
|
Motors :
Power Contin :
:
Power Hourly :
Tract Eff Cont :
Tract Eff Short :
Tract Eff Start :
Total Weight :
Adhesion Weight :
Axle Weight :
Power to Weight
|
4
1850kW @ 83km/h
1900kW @ 83km/h
N/A
N/A
80, 85kN
135kN
57.0t
57.0t
14.25t
32.46, 33.33kW/t
|

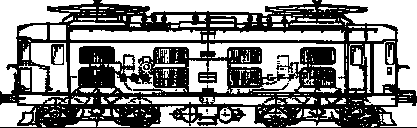

 Re410, Re4/4(Ia)

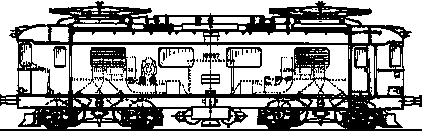

 Re410, Re4/4(Ib)
TOP
MAIN
HOME
With the Re4/4 into a New Era. In 1947 a new generation of locomotives appeared
on the Swiss rail network. The Swiss Federal Railways were able to revolutionize
its entire concept for motive power with the purchase of the Re4/4 I. This
locomotive had two power trucks and no pilot trucks. Its maximum speed of 125km/h
or 78 mph enabled considerably shorter trip times.
This locomotive is still considered today as a milestone in the history of Swiss
locomotive building. The Re4/4 I was swift and at just 57 metric tons was a
remarkably lightweight unit. It mastered its period of use extremely well.
It introduced a new era in SBB passenger service with the transition from heavy,
sedate express train service to accelerated city-to-city connections with short,
regularly scheduled timings.
The Re4/4 I had a power output of 1,855kW/2,520HP was a very good general-purpose
locomotive, whose push/pull and multiple unit controls made it suitable for a
rationalised push/pull train service as well as for m.u. motive power operation.
The good reserve of power for acceleration present on these locomotives with their
electric resistance brakes made them the ideal combination with the comfortable SBB
lightweight steel passenger cars.
These train consists left their stamp for a long time on the image of passenger train
service for long distance city-to-city connections.
HOME
MAIN
TOP
Re420, Re4/4(II) class Electric Locomotive of the SBB & BLS
Re420 11222
|

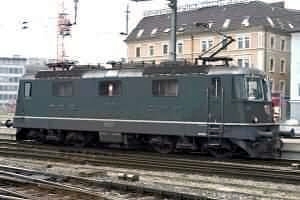

Re420 11243
|
Class Numbers :
:
:
Wheel Arrange :
Builders :
Build Dates :
Power Supply :
Maximum Speed :
Len over Buffers :
Driving Wheels :
|
Re420 11101-349
Re420 11371-397
BLS Re420 501-12
Bo'Bo'
SLM, BBC
1964-85
15kV
140km/h
14.8m, 14.9m, 15.4m
1040mm
|
Motors :
Power Contin :
Power Hourly :
Tract Eff Cont :
Tract Eff Short :
Tract Eff Start :
Total Weight :
Adhesion Weight :
Axle Weight :
Power to Weight
|
4
4700kW
N/A
N/A
167kN
255kN
80.0, 85.0t
80.0, 85.0t
20.00, 21.25t
58.75kW/t
|

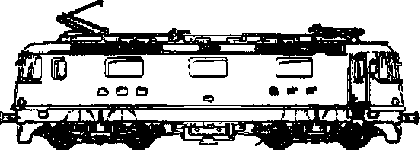

 Re420, Re4/4(II)
TOP
MAIN
HOME
Re430, Re4/4(III) class Electric Locomotive of the SBB & SOB
Re430 11351
|

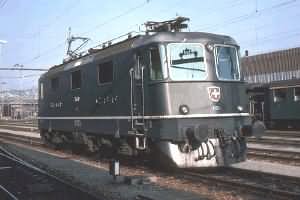

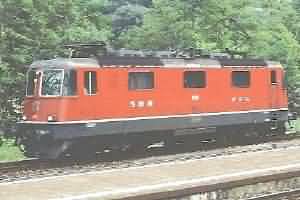

Re430 11352
|
Class Numbers :
Wheel Arrange :
Builders :
Build Dates :
Power Supply :
Maximum Speed :
Len over Buffers :
Driving Wheels :
|
Re430 11350-70
Bo'Bo'
SLM, BBC
1967, 1971
15 kV
140km/h
15, 41m
1040mm
|
Motors :
Power Contin :
Power Hourly :
Tract Eff Cont :
Tract Eff Short :
Tract Eff Start :
Total Weight :
Adhesion Weight :
Axle Weight :
Power to Weight
|
4
4700kW
N/A
N/A
167kN
255kN
80.0, 85.0t
80.0, 85.0t
20.00, 21.25t
58.75kW/t
|
Re430, Re4/4(III)
These locomotives are nearly identical to the Re420, having a lower maximum speed and
a slightly higher tractive effort used to great effect in Gotthard freight traffic.
In 1983 locos 11351-53 went to the Sud Ost Bahn (SOB) to complement their 1967
built Re4/4 41.
A locomotive exchange with the SBB saw transfer of the four prototype Re440 locomotives
to the Sud Ost Bahn (SOB), with the SBB receiving back its original three Re430's plus
the older SOB Re4/4 41 which became Re430 11350. This unit carries only a single
pantograph. Five further Re4/4 III's were later added, then all were divested to SBB cargo.
TOP
MAIN
HOME
Re440, Re446, Re4/4(IV) class Electric Locomotive of the SBB & SOB

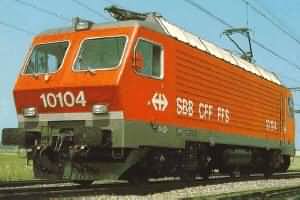

Re440 10104
|

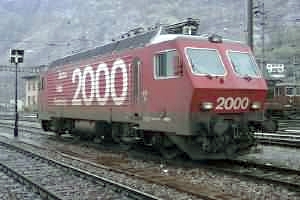

Re440 in Lok 2000 colours
|
Class Numbers :
:
Wheel Arrange :
Builders :
Build Dates :
Power Supply :
Maximum Speed :
Len over Buffers :
Driving Wheels :
|
Re440 10101-04
SOB Re446 15-18
Bo'Bo'
SLM, BBC
1982
15 kV
160km/h
15, 8m
1040mm
|
Motors :
Power Contin :
Power Hourly :
Tract Eff Cont :
Tract Eff Short :
Tract Eff Start :
Total Weight :
Adhesion Weight :
Axle Weight :
Power to Weight :
|
4
5050kW
N/A
N/A
N/A
300kN
80.0t
80.0t
20.0t
63.15kW/t
|

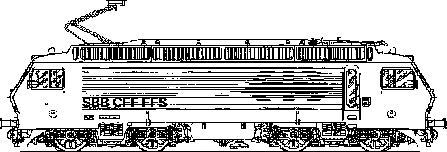

 Re440, Re446, Re4/4(IV)
TOP
MAIN
HOME
Re460, Re465 class Electric Locomotive of the SBB & BLS

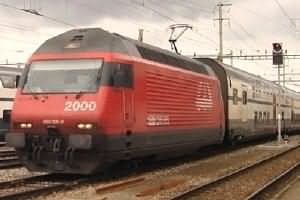

SBB Re460 105-0
|

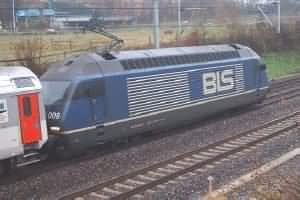

BLS Re465 009
|
Class Numbers :
:
Wheel Arrange :
Builders :
Build Dates :
Power Supply :
Maximum Speed :
Len over Buffers :
Driving Wheels :
|
SBB Re460 001-118
BLS Re465 001-018
Bo'Bo'
SLM, BBC
1991-1996
15 kV
230km/h
18.5m
1040mm
|
Motors :
Power Contin :
Power Hourly :
Tract Eff Cont :
Tract Eff Short :
Tract Eff Start :
Total Weight :
Adhesion Weight :
Axle Weight :
Power to Weight
|
4
5050kW
N/A
N/A
N/A
300kN
80.0t
80.0t
20.0t
63.15kW/t
|

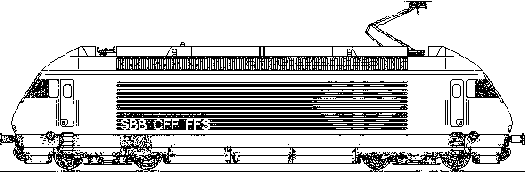

 Re460, Re465
TOP
MAIN
HOME
Re482, Re485 class Electric Locomotive of the SBB/BLS

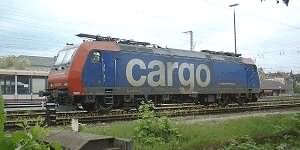

SBB Re482 011-4
|

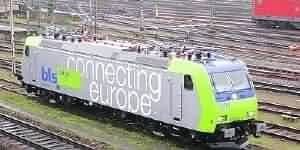

BLS Re485 001
|
Class Numbers :
:
Wheel Arrange :
Builders :
Build Dates :
Power Supply :
Maximum Speed :
Len over Buffers :
Driving Wheels :
|
SBB Re482 001-35
BLS Re485 001-20
Bo'Bo'
SLM, BBC
N/A
15 kV
N/A
N/A
1040mm
|
Motors :
Power Contin :
Power Hourly :
Tract Eff Cont :
Tract Eff Short :
Tract Eff Start :
Total Weight :
Adhesion Weight :
Axle Weight :
Power to Weight
|
4
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
|

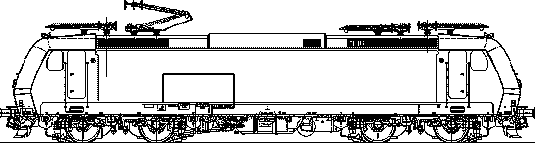

 Re482, Re485
