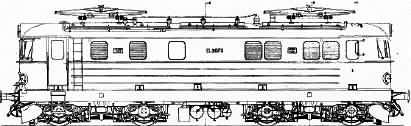

EL-11 class Electric Mainline Locomotive

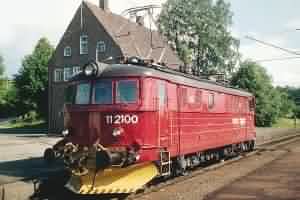

EL-11 2100
|

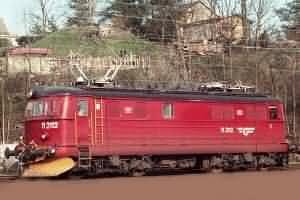

EL-11 2112
|
Class Numbers :
:
Wheel Arrangement :
Builders :
Build Dates :
Maximum Speed :
Length over Buffers :
Driving Wheels :
Carrying Wheels :
|
NSB EL11 2078-2112
2145-50
Bo'Bo'
Thune
1951-1964
105km/h
14.45m
|
Power Supply :
Motors :
Power Contin :
Power Hourly :
Tract Effort Start :
Total Weight :
Adhes Weight :
Axle Weight :
Power to Weight :
|
25kV
4x NEBB
1676kW
2280kW
110kN
62.0t
62.0t
15.5t
15.77kW/t
|
Locomotives 2092, 2098 & 2110 were set aside for use on the Flamsbahn.
Locomotives were placed in museums: 2078 & 2107 went to the Norwegian Rail Museum and 2085 & 2098 in the NJK.
TOP
MAIN
HOME

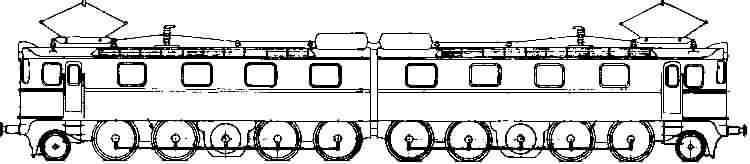

EL-12 class Electric Mainline Locomotive

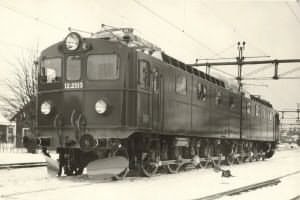

EL-12 2113
|

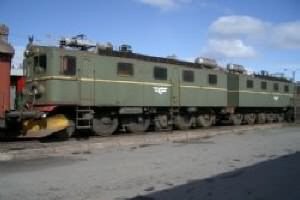

EL-12 2119
|
Class Numbers :
:
Wheel Arrangement :
:
Builders :
Build Dates :
Maximum Speed :
Length over Buffers :
Driving Wheels :
Carrying Wheels :
|
NSB EL12 2113-2120
(twin section)
1'D+D1' or 1'D+1'D+D1'
Thune
1954-1957
75km/h
13.245m (each)
|
Power Supply :
Motors :
Power Contin :
Power Hourly :
Tract Effort Start :
Total Weight :
Adhes Weight :
Axle Weight :
Power to Weight :
|
25kV
2x ASEA
2398/3260kW
2398/3260kW
95.0t
N/At
|
TOP
MAIN
HOME

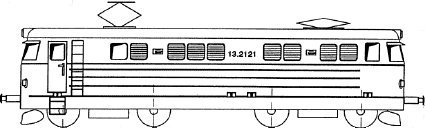

EL-13 class Electric Mainline Locomotive
EL-13 2124
|
EL-13 2142
|
Class Numbers :
:
Wheel Arrangement :
Builders :
Build Dates :
Maximum Speed :
Length over Buffers :
Driving Wheels :
Carrying Wheels :
|
NSB EL13 2121-2144
2151-2163
Bo'Bo'
Thune
1957-1966
100km/h
15.00m
|
Power Supply :
Motors :
Power Contin :
Power Hourly :
Tract Effort Start :
Total Weight :
Adhes Weight :
Axle Weight :
Power to Weight :
|
25kV
4x NEBB
2648
3600
72.0t
72.0t
18.0t
|
TOP
MAIN
HOME

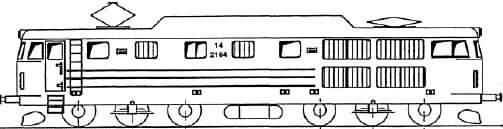

EL-14 class Electric Mainline Locomotive
EL-14 2177
|

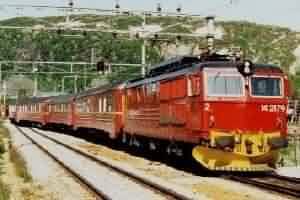

EL-14 2179
|
Class Numbers :
:
Wheel Arrangement :
Builders :
Build Dates :
Maximum Speed :
Length over Buffers :
Driving Wheels :
Carrying Wheels :
|
NSB EL14 2164-2190
2197-2200
Co'Co'
Thune
1968-1973
120/100km/h
17.74m
|
Power Supply :
Motors :
Power Contin :
Power Hourly :
Tract Effort Start :
Total Weight :
Adhes Weight :
Axle Weight :
Power to Weight :
|
25kV
6x NEBB
5082
6930
105.0t
105.0t
17.5t
|
TOP
MAIN
HOME

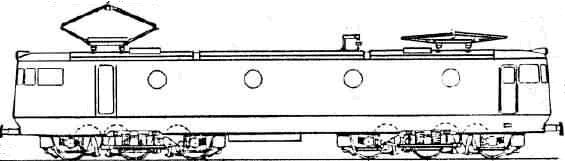

EL-15 class Electric Mainline Locomotive
EL-15 2196
|

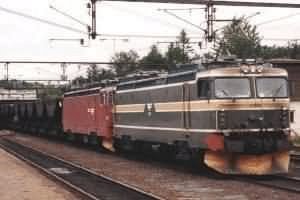

EL-15 2192
|
Class Numbers :
Wheel Arrangement :
Builders :
Build Dates :
Maximum Speed :
Length over Buffers :
Driving Wheels :
Carrying Wheels :
|
NSB EL15 2191-2196
Co'Co'
ASEA/Thune
1967
120km/h
19.80m
|
Power Supply :
Motors :
Power Contin :
Power Hourly :
Tract Effort Start :
Total Weight :
Adhes Weight :
Axle Weight :
Power to Weight :
|
25kV
6x ASEA
5406
7350
132.0t
132.0t
22.0t
|
TOP
MAIN
HOME

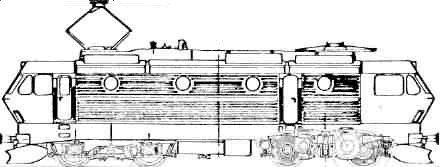

EL-16 class Electric Mainline Locomotive

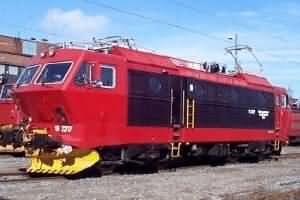

EL-16 2217
|
EL-16 2222
|
Class Numbers :
Wheel Arrangement :
Builders :
Build Dates :
Maximum Speed :
Length over Buffers :
Driving Wheels :
Carrying Wheels :
|
NSB EL16 2201-2217
Bo'Bo'
Thune
1977-1984
140km/h
15.52m
|
Power Supply :
Motors :
Power Contin :
Power Hourly :
Tract Effort Start :
Total Weight :
Adhes Weight :
Axle Weight :
Power to Weight :
|
25kV
4x ASEA
4440
6050
80.0t
80.0t
20.0t
|
TOP
MAIN
HOME

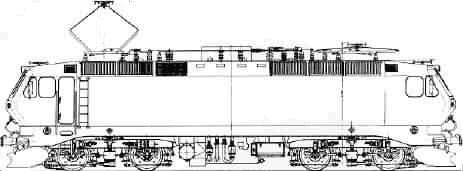

EL-17 class Electric Mainline Locomotive

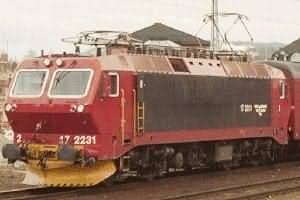

EL-17 2231
|

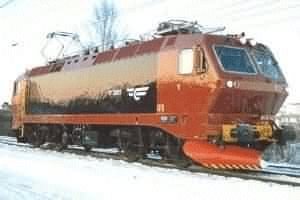

EL-17 2221
|
Class Numbers :
Wheel Arrangement :
Builders :
Build Dates :
Maximum Speed :
Length over Buffers :
Driving Wheels :
Carrying Wheels :
|
NSB EL17 2191-2196
Co'Co'
Norsk,BBC
1981-1987
150km/h
16.30m
|
Power Supply :
Motors :
Power Contin :
Power Hourly :
Tract Effort Start :
Total Weight :
Adhes Weight :
Axle Weight :
Power to Weight :
|
25kV
4x NEBB
3000
4090
240 kN
64.0t
64.0t
16.0t
|
TOP
MAIN
HOME

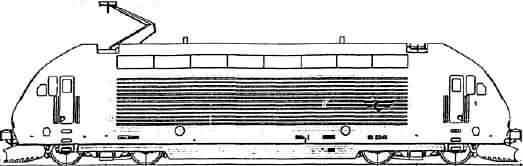

EL-18 class Electric Mainline Locomotive

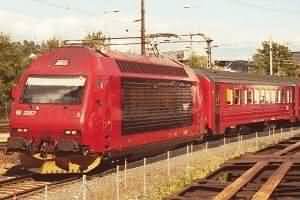

EL-18 2257
|
EL-18 2247
|
Class Numbers :
Wheel Arrangement :
Builders :
Build Dates :
Maximum Speed :
Length over Buffers :
Driving Wheels :
Carrying Wheels :
|
NSB EL18 2241-2262
Co'Co'
ADtranz
1996-1997
200km/h
18.50m
1100mm
|
Power Supply :
Motors :
Power Contin :
Power Hourly :
Tract Effort Start :
Total Weight :
Adhes Weight :
Axle Weight :
Power to Weight :
|
25kV
4x ABB
5400
7340
275 kN
82.2t
82.2t
20.55t
|
