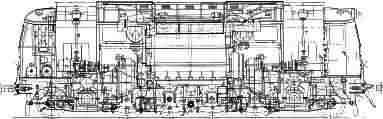

Di-1 class Diesel Mainline Locomotive

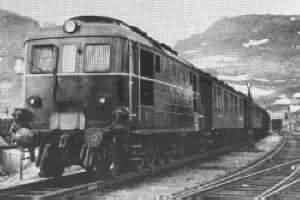

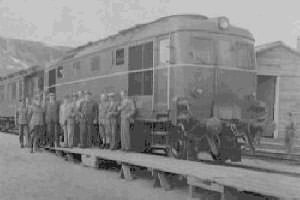

Di-1 001

Class Numbers :
Wheel Arrangement :
Builders :
Build Dates :

Maximum Speed :
Length over Buffers :
Driving Wheels :
Carrying Wheels :

NSB Di-1 001
1'B B1'
Krupp
1942

100km/h
13.5m

Engine :
Transmission :
Power Continuous :
Power Hourly :

Total Weight :
Adhesion Weight :
Axle Weight :
Power to Weight :

2x MAN
Diesel Electric
1472kW
2000kW

82.7t
60.0t
15.0t
11.25kW/t

TOP MAIN HOME

Di-2 class Diesel Transfer Locomotive

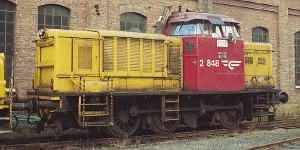

Di-2 848

Di-2 808

Class Numbers :
Wheel Arrangement :
Builders :
Build Dates :

Maximum Speed :
Length over Buffers :
Driving Wheels :

NSB Di-2 801-854
C
MaK/Thune
1954-1973

50/80km/h
10.00m

Engine :
Transmission :
Power Continuous :
Power Hourly :

Total Weight :
Adhesion Weight :
Axle Weight :
Power to Weight :

MaK/BMV
Diesel Electric
423*/441kW
575*/600kW

45.0*/47.4t
45.0*/47.4t
15.0*/15.8t
9.4*/9.3kW/t

* Refers to MAK engined variants

TOP MAIN HOME

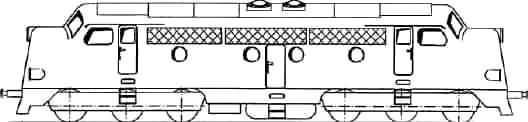

Di-3 class Diesel Mainline Locomotive

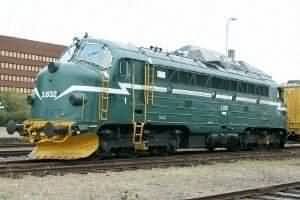

Di-3 632

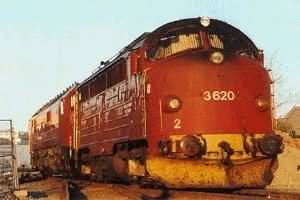

Di-3 620

Class Numbers :

Wheel Arrangement :
Builders :
Build Dates :

Maximum Speed :
Length over Buffers :
Driving Wheels :

NSB Di-3a 602-33
Di-3b 641-43
Co'Co'
Nohab
1957-1959

105/143km/h
18.6/18.9m

Engine :
Transmission :
Power Continuous :
Power Hourly :

Total Weight :
Adhesion Weight :
Axle Weight :
Power to Weight :

6* GM567C/E
Diesel Electric
1305kW
1775kW

102.0t
102.0t
17.0t
12.79kW/t

TOP MAIN HOME

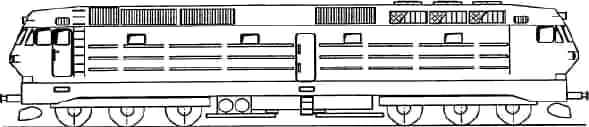

Di-4 class Diesel Mainline Locomotive

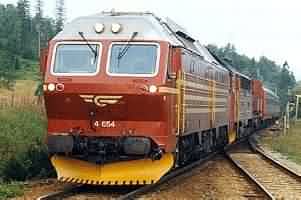

Di-4 654

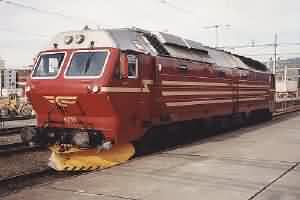

Di-4 655

Class Numbers :
Wheel Arrangement :
Builders :
Build Dates :

Maximum Speed :
Length over Buffers :
Driving Wheels :

NSB Di-4 651-55
Co'Co'
Henschel/BBC
1980

140km/h
20.80m
1100mm

Engine :
Transmission :
Power Continuous :
Power Hourly :

Total Weight :
Adhesion Weight :
Axle Weight :
Power to Weight :

GM 16-645E
Diesel Electric
2450kW
3330kW

113.6t
113.6t
18.93t
21.57kW/t

TOP MAIN HOME

Di-5 class Diesel Transfer Locomotive

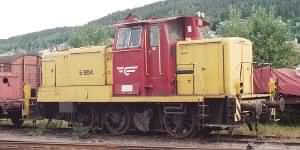

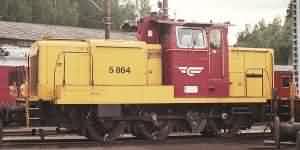

Di-5 864

Class Numbers :
:
Wheel Arrangement :
Builders :
Build Dates :
:

Maximum Speed :
Length over Buffers :
Driving Wheels :

NSB Di-5 861-867
868-877
C
MaK/Henschel
1956-1960
1985-1987

30/60km/h
10.5m

Engine :
Transmission :
Power Continuous :
Power Hourly :

Total Weight :
Adhesion Weight :
Axle Weight :
Power to Weight :

MTU GT06
Diesel Electric
485kW
659kW

53.4/*47.4t
53.4/*47.4t
17.8/*15.8t
9.08/*10.23kW/t

* Refers to numbers 869-875

TOP MAIN HOME

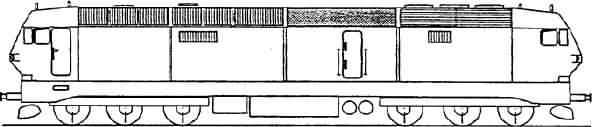

Di-6 class Diesel Mainline Locomotive

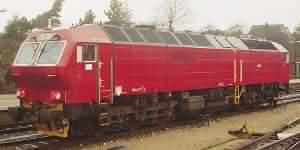

Di-6 667

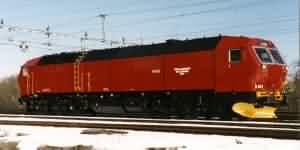

Di-6 663

Class Numbers :
Wheel Arrangement :
Builders :
Build Dates :

Maximum Speed :
Length over Buffers :
Driving Wheels :

NSB Di-6 661-672
Co'Co'
Siemens
1995-1996

160km/h
21.0m

Engine :
Transmission :
Power Continuous :
Power Hourly :

Total Weight :
Adhesion Weight :
Axle Weight :
Power to Weight :

MaK 2M282
Diesel Electric
2650kW
3603kW

119.0t
119.0t
19.83t
22.27kW/t

TOP MAIN HOME

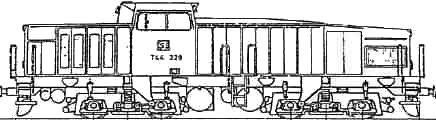

Di-7 class Diesel Mainline Locomotive

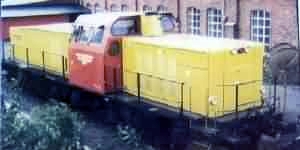

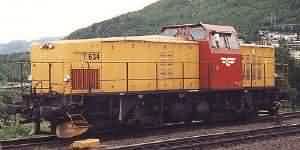

Di-7 634

Class Numbers :
:
Wheel Arrangement :
Builders :
Build Dates :

Maximum Speed :
Length over Buffers :
Driving Wheels :

NSB Di-7 634
(became SJ T44 276)
Bo'Bo'
Nohab
1969

100km/h
15.4m

Engine :
Transmission :
Power Continuous :
Power Hourly :

Total Weight :
Adhesion Weight :
Axle Weight :
Power to Weight :

GM 12-645E
Diesel Electric
1235kW
1680kW

76.0t
76.0t
19.0t

TOP MAIN HOME

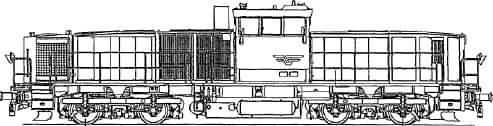

Di-8 class Diesel Mainline Locomotive

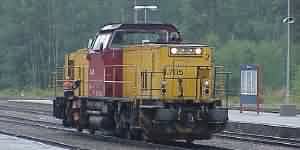

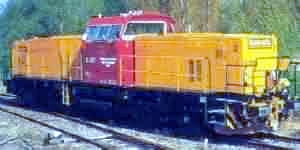

Di-8 705

Class Numbers :
Wheel Arrangement :
Builders :
Build Dates :

Maximum Speed :
Length over Buffers :
Driving Wheels :

NSB Di-8 701-720
Bo'Bo'
MaK/Siemens
1996-1997

120km/h
17.4m

Engine :
Transmission :
Power Continuous :
Power Hourly :

Total Weight :
Adhesion Weight :
Axle Weight :
Power to Weight :

Cat 3516
Diesel Electric
1570kW
2135kW

82.8t

TOP MAIN HOME

DH500 class Diesel Shunting Locomotive

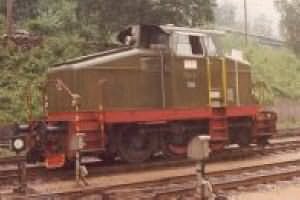

DH500 20

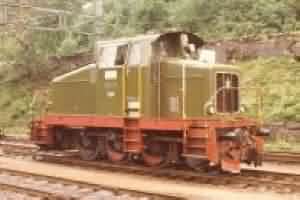

DH500 22

Class Numbers :
Wheel Arrangement :
Builders :
Build Dates :

Maximum Speed :
Length over Buffers :
Driving Wheels :

NSB DH500 20-22
C
Henschel
1961

30/60km/h
8.9m

Engine :
Transmission :
Power Continuous :
Power Hourly :

Total Weight :
Adhesion Weight :
Axle Weight :
Power to Weight :

Henschel
Diesel Electric
370kW
500kW

45.0t
45.0t
15.0t
8.22kW/t
