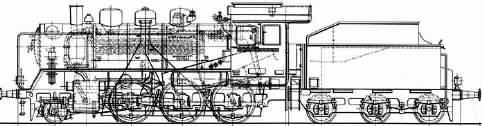

DR class 24 / DB class 024 Steam Tender Locomotive

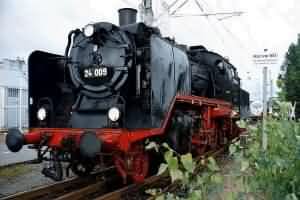

DR 24 009

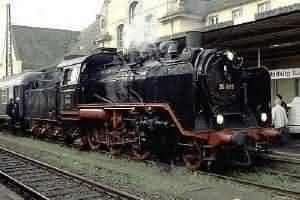

DB 24 009

Build Numbers :
:
Builder :
Build Date :
Tender :

Maximum Speed :
Length over Buffers :
Power Continuous :

Wheel Arrangement :
Driving Wheels :
Leading Wheels : 		DR 24 001-095
DB 024 001-095
Hofmann, Schichau
1926
3T16, 3T17

90km/h
16.955m
920HP

1'C h2
1500mm
850mm 		Cylinders :
Cylinder Diameter :
Cylinder Stroke :

Boiler Pressure :
Grate Area :
Heating Surface :
Superheat Surface :

Total Weight :
Adhesion Weight :
Axle Weight : 		2
500mm
660mm

14kp/cm^2
2.04m^2
104.48m^2
37.34m^2

57.4t
45.2t
15.1t

The class 24 locomotives were designed for passenger train service on flat country stretches. They were used also as universal machines on the long stretches of east and west Prussia. There they received the popular nick-name 'Steppen Pferd' (Steppe Horse). Hofmann and Schichau divided production of the first series of 37 locos, with another 58 locos being delivered by several other manufacturers up to 1938.

Borsig built two locos, 24 069 & 070 in 1931 with 25 kp/cm^2 medium pressure boilers. Both were converted in 1952 to the standard design. The class 24 developed in parallel to the class 64 tank with many parts being interchangeable. After 1948 the railways still had 33 locomotives in stock. In August 1966 the last 24 class as 24 067 was decommissioned by the German Federal Armed Forces at Rheydt.


TOP MAIN HOME

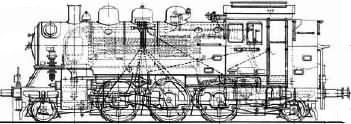

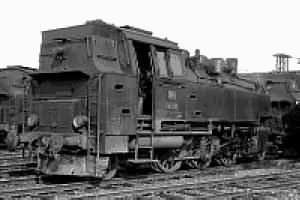

DR class 64.1 / DB class 064 Steam Tank Locomotive

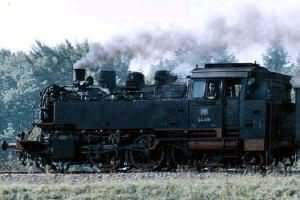

DB 64 419-1
DB 64 class

Build Numbers :
:
Builder :
Build Date :

Maximum Speed :
Length over Buffers :
Power Continuous :

Wheel Arrangement :
Driving Wheels :
Leading Wheels :
Trailing Wheels : 		DR 64.1 001-520
DB 064 001-520
All German Builders
1928

90 km/h
12.400 m
950 HP

1'C1' h2
1500 mm
850 mm
850 mm 		Cylinders :
Cylinder Diameter :
Cylinder Stroke :

Boiler Pressure :
Grate Area :
Heating Surface :
Superheat Surface :

Total Weight :
Adhesion Weight :
Axle Weight : 		2
570mm
660mm

14kp/cm^2
2.04m^2
104.48m^2
37.34m^2

74.9t
45.4t
15.3t


TOP MAIN HOME

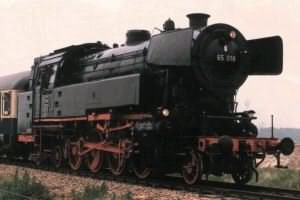

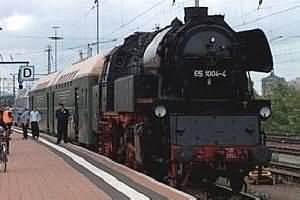

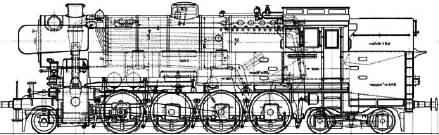

DR class 65 / DB class 065 Steam Tank Locomotive


DR 65 018
DB 65 1004-4

Build Numbers :
Builder :
Build Date :

Maximum Speed :
Length over Buffers :
Power Continuous :

Wheel Arrangement :
Driving Wheels :
Leading Wheels :
Trailing Wheels : 		DB 065 001-018
Krauss-Maffei
1951

85km/h
15.475m
1480HP

1'D2' h2
1500mm
850mm
850mm 		Cylinders :
Cylinder Diameter :
Cylinder Stroke :

Boiler Pressure :
Grate Area :
Heating Surface :
Superheat Surface :

Total Weight :
Adhesion Weight :
Axle Weight : 		2
570mm
660mm

14kp/cm^2
2.67m^2
139.93m^2
62.90m^2

107.6t
67.6t
16.9t


TOP MAIN HOME

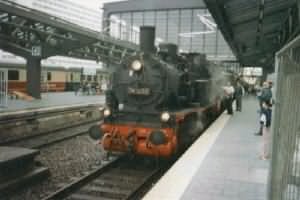

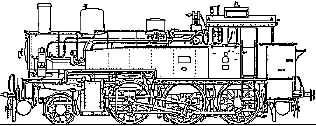

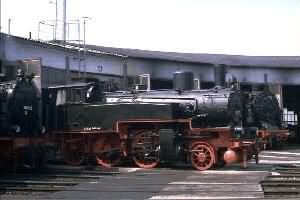

DR class 74 / DB class 074 Steam Tank Locomotive


DR 74 1230
DB 74 class

Build Numbers :

:

Builder :
Build Date :

Maximum Speed :
Length over Buffers :
Power Continuous :

Wheel Arrangement :
Driving Wheels :
Leading Wheels : 		DR 74 001-358
361-364
DB 074 001-358
361-364
Deutsche Reichsbahn
1903

80 km/h
11.190 m
520 HP

1'C n2
1500 mm
1000 mm 		Cylinders :
Cylinder Diameter :
Cylinder Stroke :

Boiler Pressure :
Grate Area :
Heating Surface :

Total Weight :
Adhesion Weight :
Axle Weight : 		2
480 mm
630 mm

12kp/cm^2
1.73m^2
116.40m^2

62.6t
47.4t
16.0t


TOP MAIN HOME

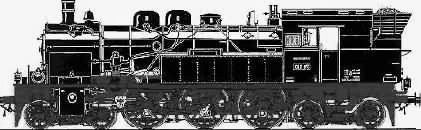

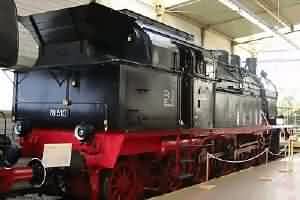

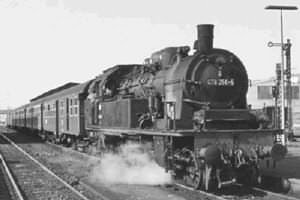

DR class 78 / DB class 078 Steam Tank Locomotive


DB 78 256-5
DR 78 510

Build Numbers :
:

Builder :
Build Date :

Maximum Speed :
Length over Buffers :
Power Continuous :

Wheel Arrangement :
Driving Wheels :
Leading Wheels :
Trailing Wheels : 		DR 78 001-330
DB 078 001-330
351-528
Steittiner, Vulcan
1912

100km/h
14.800m
1140HP

2'C2' h2
1650mm
1000mm
1000mm 		Cylinders :
Cylinder Diameter :
Cylinder Stroke :

Boiler Pressure :
Grate Area :
Heating Surface :
Superheat Surface :

Total Weight :
Adhesion Weight :
Axle Weight : 		2
560mm
630mm

12kp/cm^2
2.35m^2
135.49m^2
49.20m^2

106.0t
51.1t
17.1t


TOP MAIN HOME

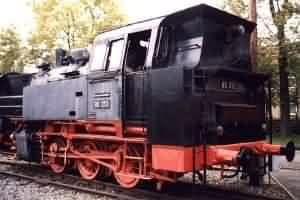

DR class 80 / DB class 080 Steam Tank Locomotive


DR 80 014
DR 80 013

Build Numbers :
:
Builder :
Build Date :

Maximum Speed :
Length over Buffers :
Power Continuous :

Wheel Arrangement :
Driving Wheels : 		DR 80 001-039
DB 080 001-039
Reichsbahn
1927

45km/h
9.670m
575HP

C h2
1100mm 		Cylinders :
Cylinder Diameter :
Cylinder Stroke :

Boiler Pressure :
Grate Area :
Heating Surface :
Superheat Surface :

Total Weight :
Adhesion Weight :
Axle Weight : 		2
450mm
550mm

14kp/cm^2
1.54m^2
69.62m^2
25.50m^2

54.4t
54.4t
18.2t


TOP MAIN HOME

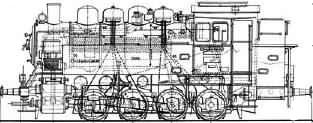

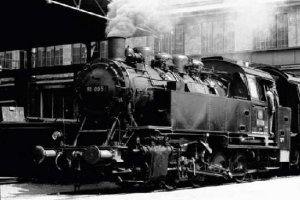

DR class 81 / DB class 081 Steam Tank Locomotive

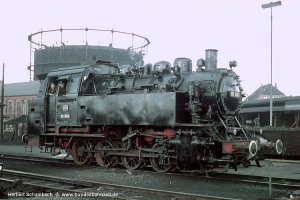

DR 81 005
DR 81 004

Build Numbers :
:
Builder :
Build Date :

Maximum Speed :
Length over Buffers :
Power Continuous :

Wheel Arrangement :
Driving Wheels : 		DR 81 001-010
DB 081 001-010
Reichsbahn
1928

45km/h
11.080m
860HP

D h2
1100mm 		Cylinders :
Cylinder Diameter :
Cylinder Stroke :

Boiler Pressure :
Grate Area :
Heating Surface :
Superheat Surface :

Total Weight :
Adhesion Weight :
Axle Weight : 		2
500mm
550mm

14kp/cm^2
1.82m^2
95.91m^2
34.00m^2

67.5t
67.5t
17.0t


TOP MAIN HOME

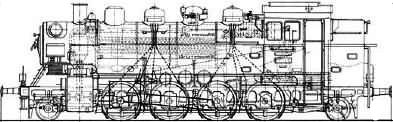

DR class 86 / DB class 086 Steam Tank Locomotive

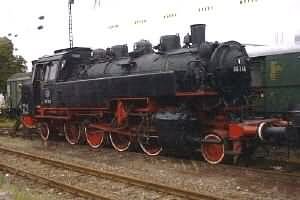

DR 86 346

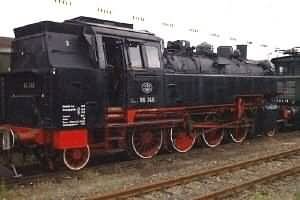

DR 86 346

Build Numbers :

:

Builder :
Build Date :

Maximum Speed :
Length over Buffers :
Power Continuous :

Wheel Arrangement :
Driving Wheels :
Leading Wheels :
Trailing Wheels : 		DR 86.1 001-966
1000
DB 086 001-966
1000
Reichsbahn
1928

70km/h
13.820m
1030HP

1'D1' h2
1400mm
850mm
850mm 		Cylinders :
Cylinder Diameter :
Cylinder Stroke :

Boiler Pressure :
Grate Area :
Heating Surface :
Superheat Surface :

Total Weight :
Adhesion Weight :
Axle Weight : 		2
570mm
660mm

14kp/cm^2
2.39m^2
117.37m^2
47.00m^2

88.5t
60.6t
15.6t


TOP MAIN HOME

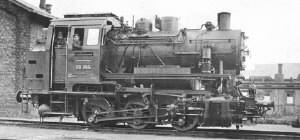

DR class 89 / DB class 089 Steam Tank Locomotive

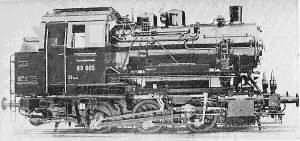

DR 89 005
DR 89 005

Build Numbers :
:
Builder :

Build Date :

Maximum Speed :
Length over Buffers :
Power Continuous :

Wheel Arrangement :
Driving Wheels : 		DR 89 001-010
DB 089 001-010
Henschel, Schwartzkopf
1934

45km/h
9.600m
525HP

C h2
1400mm 		Cylinders :
Cylinder Diameter :
Cylinder Stroke :

Boiler Pressure :
Grate Area :
Heating Surface :
Superheat Surface :

Total Weight :
Adhesion Weight :
Axle Weight : 		2
420mm
550mm

14kp/cm^2
1.42m^2
67.86m^2
24.10m^2

46.6t
46.6t
15.6t

DB 89 005 is on display at Dresden
