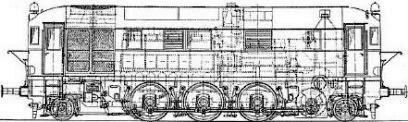

V16/140 class Diesel Mainline Locomotive

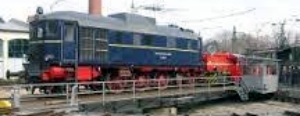

V16/140 001
V16/140 001
Class Numbers :
Builders :
Build Dates :

Maximum Speed :
Length over Buffers :
Wheel Arrangement :
Driving Wheels : 		DB V16/V140 001
N/A
1936

100km/h
14.40m
1'C1' 		Engine :
Transmission :
Power Continuous :
Tractive Effort Cont :

Total Weight :
Adhesion Weight :
Axle Weight :
Power to Weight : 		1* MAN
Diesel Hydraulic
1,030kW (1,400HP)
137.3 kN

83.0t
51.7t

12.41kW/t

TOP MAIN HOME

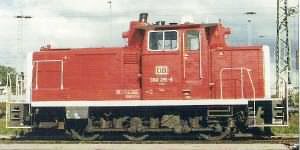

V60/V260/V360 class Diesel Transfer Locomotive


DB V360 215-8
Class V260/V360/V364
total = 623
* Refers V260/V360/V364 series
DB V361 197-7
Class V261/V361/V365
total = 319
** Refers V261/V361/V365 series

Class :
V261 :
V260 :
V261 :
V260 :
V261 :
V260 :
V261 :
V260 :
V260 :
V260 :

Locomotives :
V60 003 :
V60 011-013 :
V60 014-016 :
V60 025-026 :
V60 017-018 :
V60 019-021 :
V60 022-024 :
V60 027-036 :
V60 042-049 :

Transmission :
Power Continuous :
Tractive Effort Cont :

Build Dates :
Maximum Speed :
Length over Buffers :
Wheel Arrangement :
Driving Wheels : 		Total Numbers
197
170
82
117
34
49
2
40
27
3

Transmission
Voith L37zUB
Krupp 3BiD46
Voith L37zUB
Voith L37zUB
Voith L37zUB
Voith L37zUB
Voith L21 7
Voith L37zUB
Voith L27zUB

Diesel Hydraulic
1030kW (650 HP)
137.3 kN

1955-1956
60km/h
10.450m
C
1250mm 		Builder :
MaK :
Krupp :
Krupp :
Henschel :
Henschel :
Krauss-Maffei :
Krauss-Maffei :
Arnold Jung :
Klock-Humblt-Deutz :
Gmeinder & Co :

Engine Make :
MaK 6cyl :
Maybach 12cyl :
Deutz 8cyl/2Str :
Deutz 8cyl/2Str :
MaK 6cyl :
MAN 6cyl :
Maybach 12cyl :
Daimler-Benz 12cyl :
Maybach 12cyl :

Total Weight :
Adhesion Weight :
Axle Weight :
Power to Weight :
Fuel Capacity :
Sand Capacity : 		Factory
Kiel
Kessel
Kessel
Kassel
Kassel
Munchen
Munchen
Jungenthal
Koln
Mosbach

Engine Type
MS301C
GT06/6A
BT 8M 625/Tl2M420
BT 8M 625/Tl2M420
MS301C
W6V22/30A
GT06/6A7
MB 820B
GT06/6A

*48.3/**54.0t
*48.3/**54.0t
*16.0/**18.0t
*21.32/**19.07kW/t
*1700/**1300 litres
300kg

TOP MAIN HOME

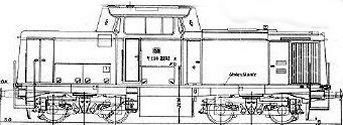

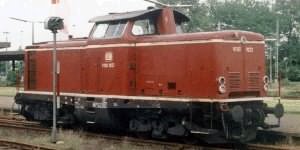

V100/V212 class Diesel Mainline Locomotive


DB V100 1023
V100 series total = 6

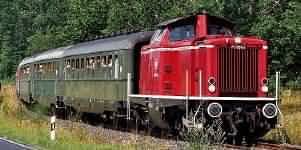

DB V212 023
V212 series total = 381

Builders :
MaK :
Krupp :
Henschel :
Krauss-Maffei :
Arnold Jung :
Deutz :
Maschinenfabrik :

Engine :
Transmission :
Power Continuous :
Tractive Effort Cont : 		Factory
Kiel
Kessel
Kassel
Munchen
Jungenthal
Koln
Esslingen

1* MTU/MAN
Diesel Hydraulic
993kW (1350 HP)
176.6 kN 		V100 Class Numbers :
V212 Class Numbers :
Build Dates :

Maximum Speed :
Length over Buffers :
Wheel Arrangement :
Driving Wheels :

Total Weight :
Adhesion Weight :
Axle Weight :
Power to Weight : 		001-005, 007
2001-2381
1962

100km/h
12.1/12.3m
Bo'Bo'
950mm

63.0t
63.0t
15.75t
15.76kW/t


TOP MAIN HOME

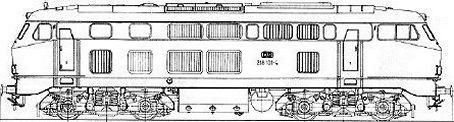

V160/V216/V218 class Diesel Mainline Locomotive

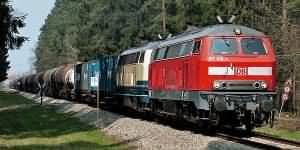

DB V216 094-3

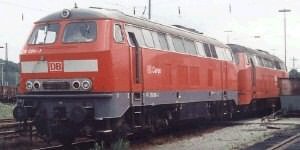

DB V217 018-1

Builders :
:
V216 Class Numbers :
V218 Class Numbers :
Build Dates :

Maximum Speed :
Length over Buffers :
Wheel Arrangement :
Driving Wheels : 		Krupp (Kessel), Henschel (Kassel)
001-009
101-492
1960-1971

*120/**140km/h
16.0m
Bo'Bo'
1000mm 		Engine :
Transmission :
Power Continuous :

Total Weight :
Adhesion Weight :
Axle Weight :
Power to Weight :
Fuel Tank : 		1
Diesel Hydraulic
1900kW (2500 HP)

*74.0/**80.0t
*74.0/**80.0t
*18.5/**20.0t
*25.68/**23.75kW/t
3100 litres

* Refers to V216 series, ** Refers to V218 series
V216 001-009 was nicknamed 'La Lollo' (Gina Lollabridgida) due to the nose section shape.


TOP MAIN HOME

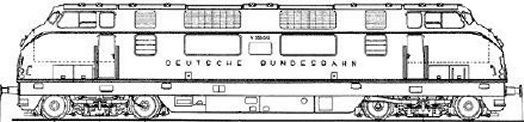

V200/V220/V221 class Diesel Mainline Locomotive

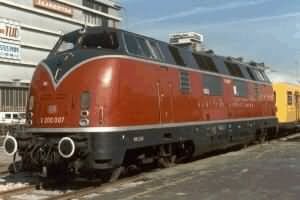

DB V200 007

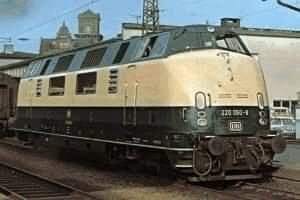

DB V220 060-8

Builder :
:
Builder :
:
V220 Class Numbers :
V221 Class Numbers :
Build Dates :

Maximum Speed :
Length over Buffers :
:
Wheel Arrangement :
Driving Wheels : 		Krauss Maffei
(Munchen)
MaK
(Kiel)
001-086
101-150
1953, 1956-1958

140km/h
18.47m (prototype)
18.53m
Bo'Bo'
1000mm 		Engine :

Engine :

Engine :

Transmission :
Power Continuous :

Total Weight :
Adhesion Weight :
Axle Weight :
Power to Weight : 		2* Maybach
V12 MD650
2* Mercedes-Benz
V12 MB820Bb
2* MAN
V12 L 12V18/21
Diesel Hydraulic
1618kW

80.0t
80.0t
20.0t
20.225kW/t
